Quick Details

  • Condition: New
  • Type: Electromagnetic iron separator
  • Production Capacity: 98%
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Santian
  • Model Number: RCDD series
  • Voltage: 380V
  • Power(W): 4KW
  • Dimension(L*W*H): 3250*1400*1200
  • Weight: 3150kg
  • Certification: ISO9001:2008, API, ISO9001:2008, etc
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Magnetic origin: Electromagnetic
  • Composition of magnetic system: Excitation coils
  • Cooling style: Natural cooling
  • Adaptive belt speed: ≤ 4.5 m/s

Packaging & Delivery

Packaging Details Export packing, each packed in a wooden case, or as per customer's requests
Delivery Time Within 15 days after the advance payment is made

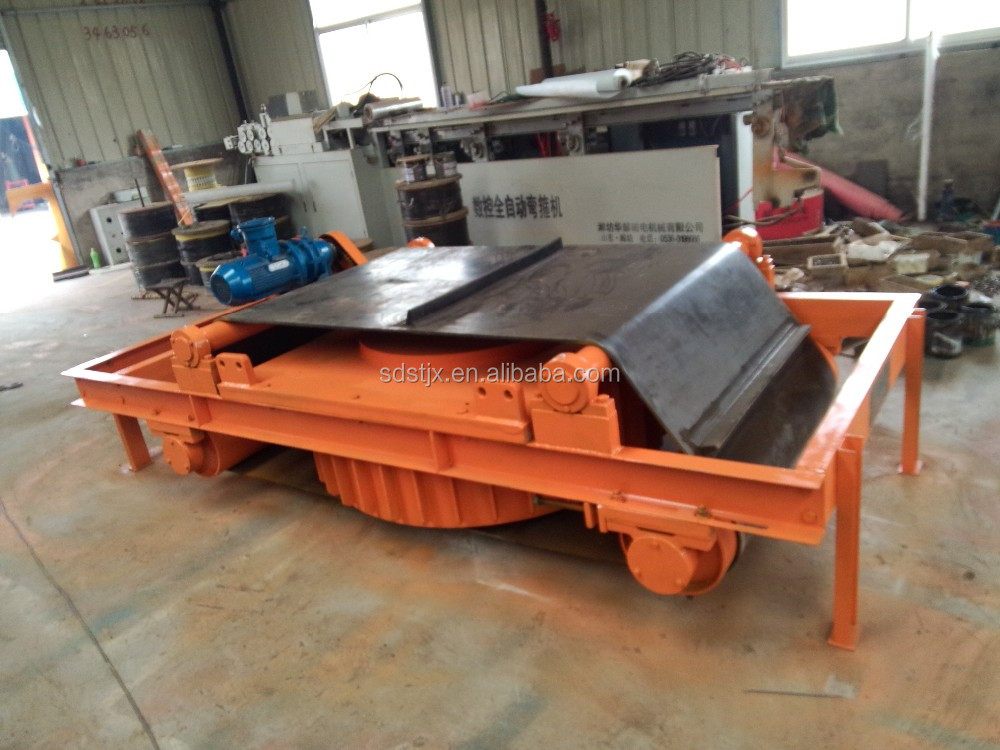

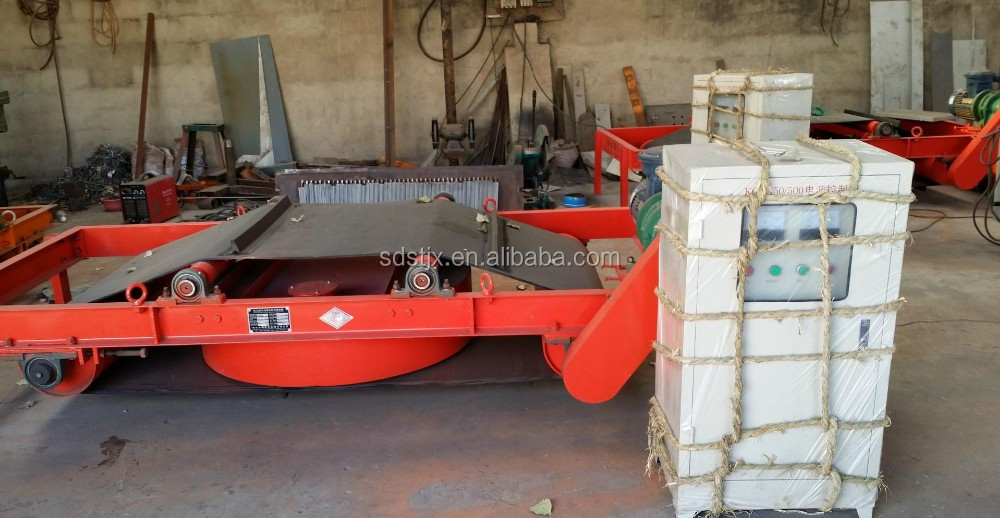

RCDD series naturally cooled automatic cleaning belt electromagnetic iron separator is added with drive motor, gear box, drive  drum, driven drum, iron-cleaning belt on the basis of RCDB series. This machine is usually suspended above the conveyor belt to collect magnetic elements, especially ferrous elements from non-magnetic materials and clean the magnetic elements automatically. This machine has high magnetic field intensity and a long service life. It is dust-proof, water-proof, fast heat radiating, automatic cleaning and corrosion-resistant.

When the machine operates, the materials on the conveyor belt pass beneath the belt electromagnetic separator, and the magnetic materials, especially the ferrous materials in the raw materials will be attracted to the cleaning belt. Driven by the motor, the cleaning belt will move forward, and the magnetic materials on the cleaning belt will be driven to move accordingly under friction force and effect of baffle plate. When the magnetic materials move away from the magnetic field area, as a result of its gravity and inertia, they will either fall to another conveyor belt on the left and be conveyed to the assembling area, or just fall to a collecting bin beneath the magnetic separator, and this is the end of the auto cleaning process.



Model No.

Adaptive belt

width

(mm)

Suspension

height

(h≤mm)

Depth of materials

(≤mm)

Excitation power

(≤kW)

Motor

power

(kW)

Weight

(kg)

RCDD-12

1200

350

300

6.7

4

3150
