Quick Details

  • Usage: Oil Well
  • Condition: New
  • Type: workover rig
  • Power Type: Diesel
  • Power(W): Standard
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: JU PAI
  • Model Number: XJ700-W/XJ900-W
  • Voltage: Actual
  • Dimension(L*W*H): Actual Height
  • Weight: Actual Weight
  • Certification: ISO9001-2000,API, API, ISO 9001:2008, etc
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Servicing Depth: 3200, 4000 meters
  • Rated hook load: 400, 600 kN
  • Max. Hook Load: 700, 900 kN
  • Derrick Height: 18, 21 meters
  • Engine Power: 221, 250 kW

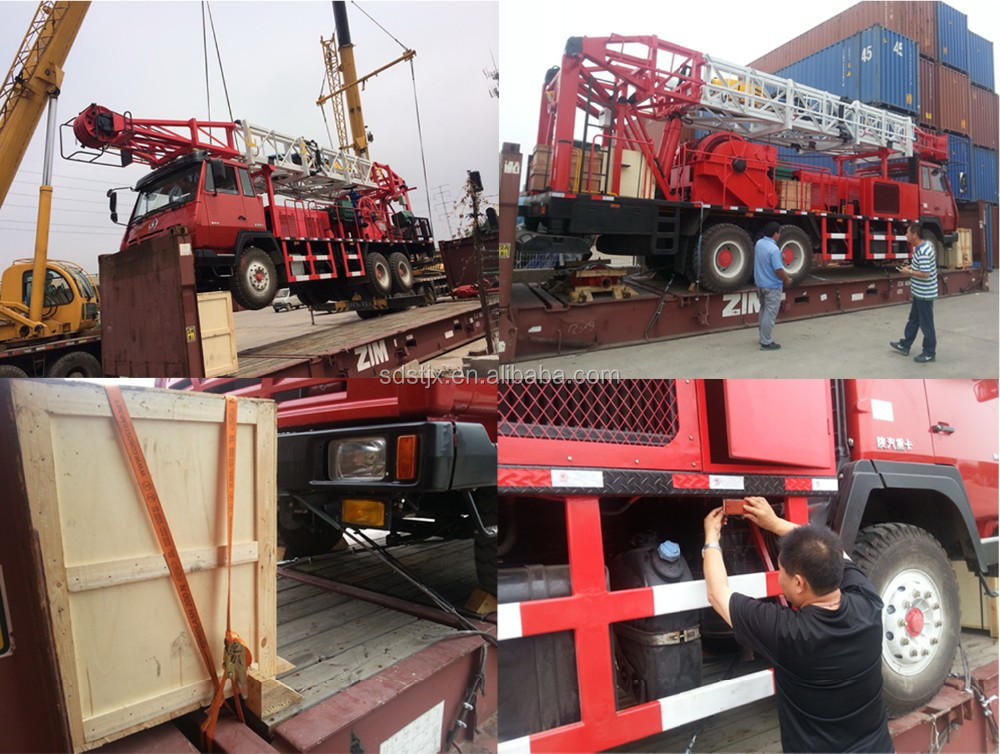

Packaging & Delivery

Packaging Details According to customer's requirements.
Delivery Time 50 days

Free standing truck mounted workover rig

XJ700-W/XJ900-W free standing workover rig, newly developed by our company, is a kind of highly efficient and stable well servicing equipment. This equipment can be equipped with SHACMAN TRUCK or SINO TRUCK special purpose chassis. The emission level of the diesel engine complies with China National IV standard. The structure of “harmony between vehicle and machine”, hydraulic & mechanical transmission system, pneumatic and hydraulic control system, have prolonged the service life of diesel engine and gear box. The chassis is complete with extendable support jack, which can increase the vehicle width support to 5.5 meters when the workover rig is working, ensuring the stability of the workover rig; a support draw rod of 8.8 (9) meters long is added at the rear end of the derrick, when can prevent the damage to the workover rig from resilience of the derrick when the oil tube is pulled apart, ensuring the stability and security of the workover rig. The free standing workover rig has achieved well servicing operation without outer anchor line. It is especially applicable to oil and water well servicing in small well site and farmland, near the building.



Model No.

XJ700-W

XJ900-W

Servicing depth

3200m (φ73mm heavy weight oil pipe )

4000m  (φ73mm heavy weight oil pipe )

3200m  (φ73mm drill pipe )

Max. hook load

700KN

900kN

Rated hook load

400KN

600KN

Speed of the hook

0.13-1.5m/s

0.08-1.3m/s

Derrick height

18m

21M

Driving type

6×4

8×4

Model of diesel engine

WP10.300E40

D10.34-40

WP10.336E40

D10.34-40

Power of diesel engine

221KW

220kW(2200r/min)

247kW(2200r/min)

249kW(2200r/min)

Max. climbing gradient

32%

30%

32%

30%

Max. moving speed

55km/h

55km/h

Min. turning radius

14m

14 m

Min. ground clearance

314mm

314mm

Travel system

3×4

4×5

Fluid torque converter

YJ409GC

YJ409GC

Overall dimensions

11690×2500×3950mm( moving )

13300×2500×4040mm( moving )

12200×2500×21430mm( working )

Weight

28500kg

32000Kg
