Mining equipment wet magnetic separator

FOB Reference Price:Get Latest Price
US $1,000-30,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
Qingdao, Shanghai, Tianjin, etc
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Santian
Model Number:
CT series
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Type:
Mining equipment
Magnetic origin:
Permanent magnetic
Composition of magnetic system:
Rare earth magnet and ferrite magnet
Application:
Iron ore mining
Magnetic filed intensity:
To be designed
Processing capacity:
5~220 tons per hour
Certification:
ISO 9001:2008, OHSAS 18001, API, etc
Packaging & Delivery
Packaging Details
Export packing, each packed in a wooden case, or as per customer's requests.
Delivery Time
Shipped in 20 days after payment



 CT series wet drum permanent magnetic separator is usually used for sorting fine-grained magnetic minerals, or removing strong magnetic elements from non-magnetic minerals. With a deep magnetic field, the machine can make a continuous row of mineral feed and discharge. It also has enough working clearance and high processing capacity.

When the raw mineral pulp flow into the tank, under the force of the magnetic field, the iron magnetite materials are attracted to the surface of the drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field area and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite materials into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge opening for tailings.

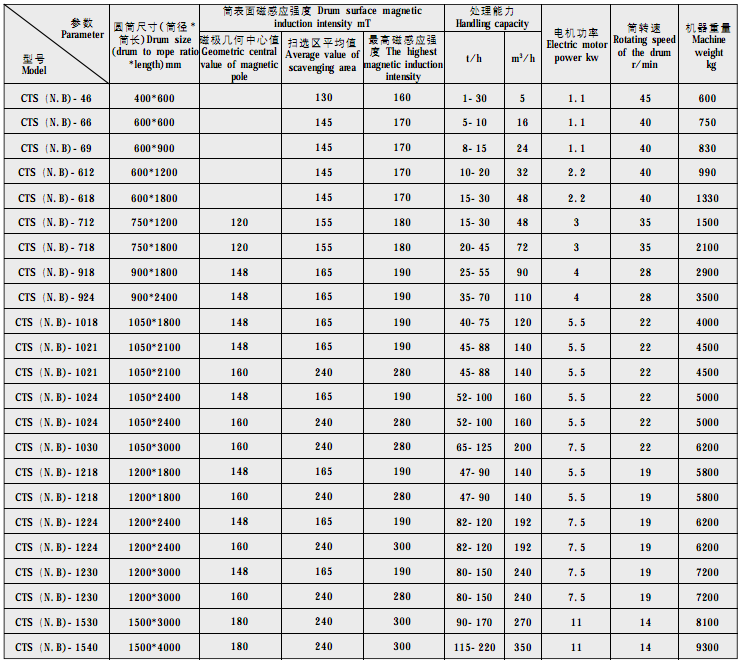

(CTS series) and semi-counter current tank (CTB series).

CTS series down current tank is applicable to rougher flotation and concentration of minerals with size: 0~10 mm.

CTB series semi-counter current tank is applicable to rougher flotation and concentration of minerals with size: 0~1 mm.
