Light type overband magnetic separator

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Magnetic Separator
Production Capacity:
98%
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Santian
Model Number:
RCYQ series
Voltage:
220/380/425V
Power(W):
Diffrent Model
Dimension(L*W*H):
Diffrent Model
Weight:
Diffrent Model
Certification:
ISO 9001, ISO 10012 etc
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Magnetic origin:
Permanent magnetic
Iron attracting ability:
0.1~20 kg
Installation type:
Suspended type
Iron cleaning style:
Automatic cleaning
Adaptive belt width:
400~1000 mm
Adaptive belt speed:
≤ 4 m/s
SupplyAbility
SupplyAbility:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packing, each packed in a wooden case, or as per customer's requests
Port
Qingdao, Shanghai, Tianjin, etc
Lead Time :
15days

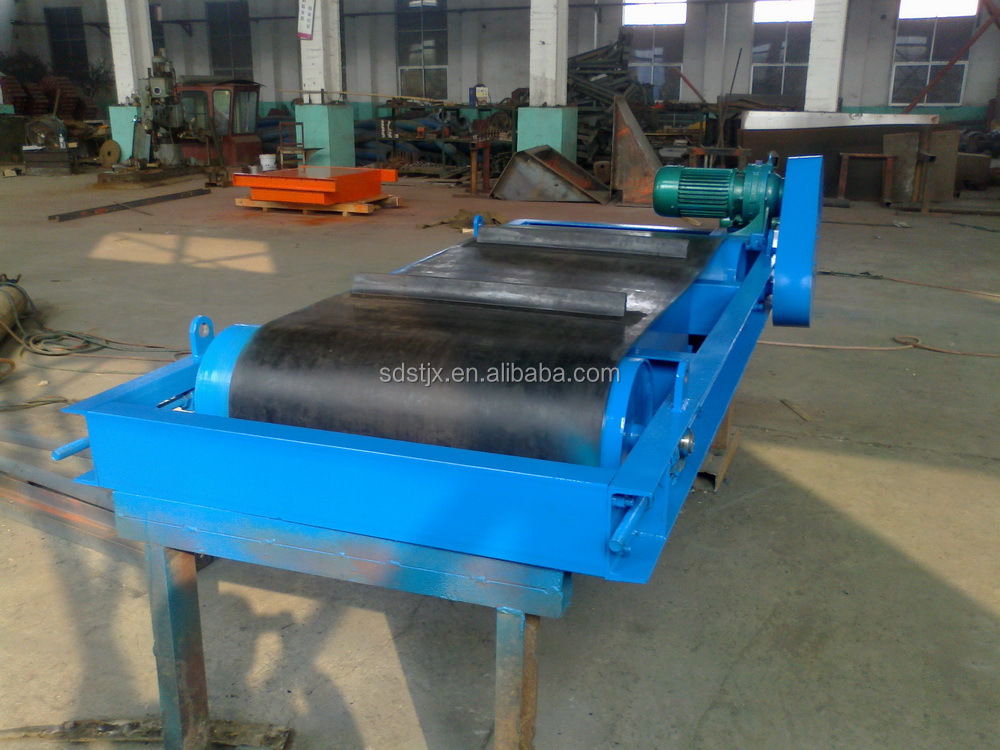

Light type overband magnetic separator



1. The overall size is smaller, so it can be called light type automatic cleaning permanent magnetic iron separator. The length of RCYQ series is 70% as that of RCYD series, and the height 86%.

2. Low noise, continuous attracting and discharge of iron.

3. Light in weight. The weight of RCYQ series is less than 75% of the weight of RCYD series.

4. Compact structure, fewer components, easy to suspend, easy maintenance and management, economical and practical.





Environmental protection, wood, food, foundry, chemical, building materials, mining, light industry, etc.

This machine is widely used to collect the ferrous elements from non-magnetic materials on conveyor belts, vibrating conveyors, vibrating feeders, blanking chutes and clean the ferrous elements automatically.

When the magnetic separator operates, the materials on the conveyor belt pass beneath the magnetic separator, and the magnetic elements, especially ferrous elements in the raw materials will be attracted to the surface of the iron-cleaning belt. Driven by the motor, the iron-cleaning belt will move forward, and the magnetic elements on the iron-cleaning belt will be driven to move accordingly under friction force and effect of baffle plate. When the magnetic elements move away from the magnetic field area, as a result of their gravity and inertia, they will either fall to another conveyor belt on the left and be conveyed to the assembling area, or just fall to a collecting box beneath the magnetic separator, and this is the end of the automatic cleaning process.





Model No.

Adaptive belt width

(mm)

Suspension height

(≤mm)

Magnetic filed intensity

(≥Gauss)

Adaptive belt speed

(≤m/s)

Iron attracting ability

(kg)

Motor power

(kW)

Weight

(kg)

RCYQ-4

400

100

3000

2

0.1~20

0.75

380

RCYQ-5

500

150

3000

2.5

0.75

490

RCYQ-6.5

650

200

3000

2.5

1.1

640

RCYQ-8

800

250

3000

3.15

1.5

850

RCYQ-10

1000

300

3000

4

2.2

1300
