Quick Details

  • Condition: New
  • Type: Iron separator
  • Production Capacity: 98%
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Santian
  • Model Number: RCDB
  • Voltage: 380V
  • Power(W): Diffrent Model
  • Dimension(L*W*H): Diffrent Model
  • Weight: Diffrent Model
  • Certification: ISO9001, ISO9001:2008, API, etc
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Magnetic origin: Electromagnetic
  • Composition of magnetic system: Excitation coils
  • Magnetic filed intensity: 600 Gauss at 150 mm suspension height
  • Depth of materials: 90 mm
  • Cooling style: Natural cooling
  • Adaptive belt width: 500 mm
  • Adaptive belt speed: ≤ 4.5 m/s

Packaging & Delivery

Packaging Details export packing, or as per customer's requests
Delivery Time 10 days

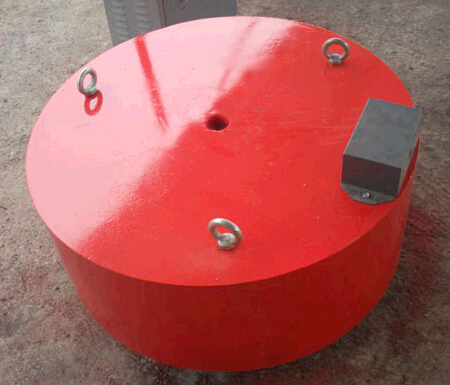

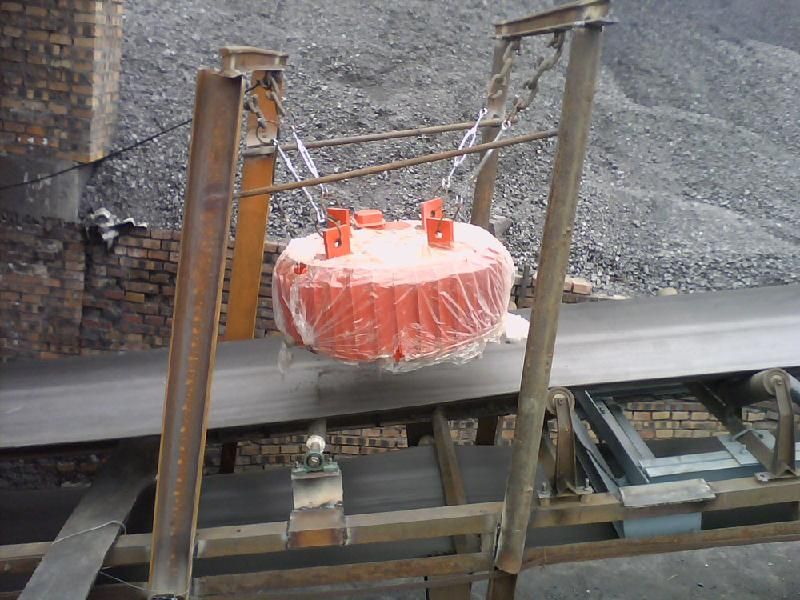

RCDB series dry electromagnetic iron separator is a separation equipment used to remove tramp iron from powdery or massive non-magnetic materials. The inner part is poured by special resin with a natural cooling wholly sealed structure. This machine is usually suspended above the conveyor belt, vibrating conveyor, vibrating feeder or chute to collect ferrous elements from non-magnetic materials.

The property index of the machine is higher than China JB/T7689-95 National Standard. It can attract tramp iron piece weighing 0.05~25KGS from non-magnetic materials.





1. High magnetic filed intensity and special design for magnetic circuit.

2. The wholly sealed structure makes the magnetic separator water-proof, dust-proof and corrosion resistant. It can work steadily in extremely harsh occasions.

3. Large heat-releasing area with a thermal fin to prevent temperature from rising too much.

4. Low energy consumption.
6. High efficiency and stable performance.







Model No.

Adaptive

belt width

(mm)

Suspension

height

(h≤mm)

Magnetic

field intensity at rated suspension height
(≥Gauss)

Depth

of materials
(≤mm)

Excitation

power
(≤kW)

Adaptive

belt speed

(≤m/s )

Weight
(kg)

Outline dimensions

(mm)

D

d

RCDB-3

300

75

500

50

0.4

4.5

185

250

400

280

RCDB-4

400

100

500

70

0.6

300

280

500

400

RCDB-5

500

150

600

90

430

325

610

450

RCDB-6

600

175

600

120

1.6

580

325

710

500

RCDB-6.5

650

200

700

150

680

325

816

640

RCDB-8

800

250

700

200

3.6

950

355

960

780

RCDB-10

1000

300

700

250

1520

360

1200

920

RCDB-12

1200

350

700

300

6.8

2250

365

1400

1000

RCDB-14

1400

400

700

350

2950

485

1650

1400

RCDB-16

1600

450

700

400

13

4800

540

1900

1650

RCDB-18

1800

500

700

450

18

6900

610

2150

1800
